CAMERA MODULE WITH 2 IR LIGHTS FOR RASPBERRY PI®

Description

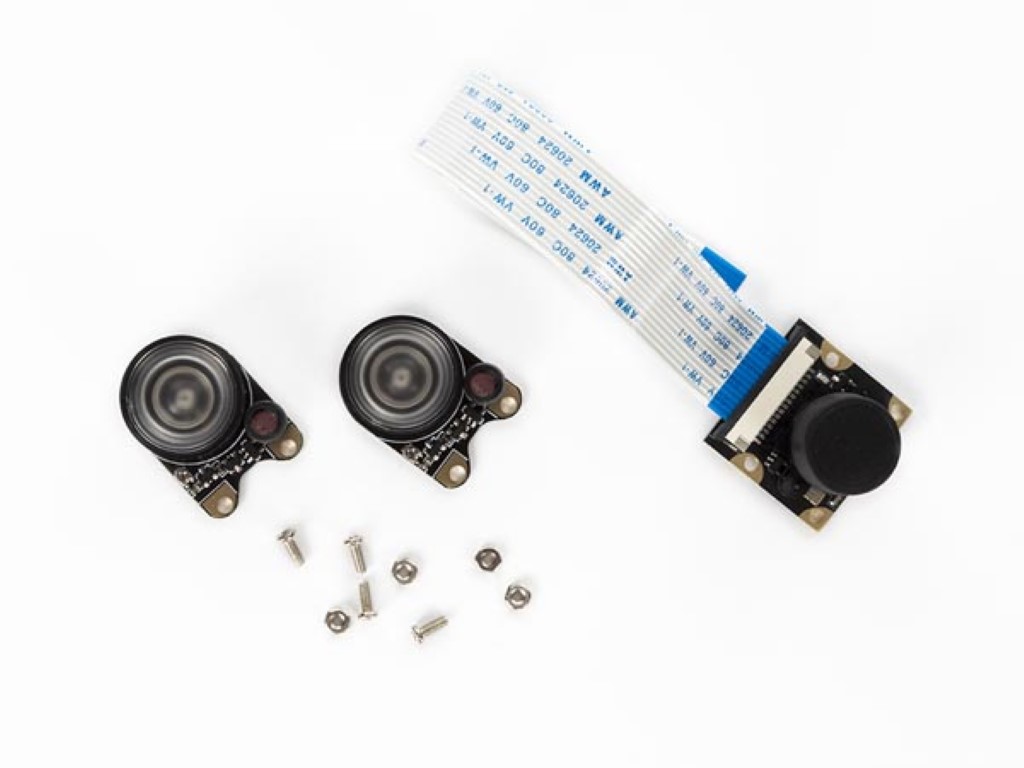

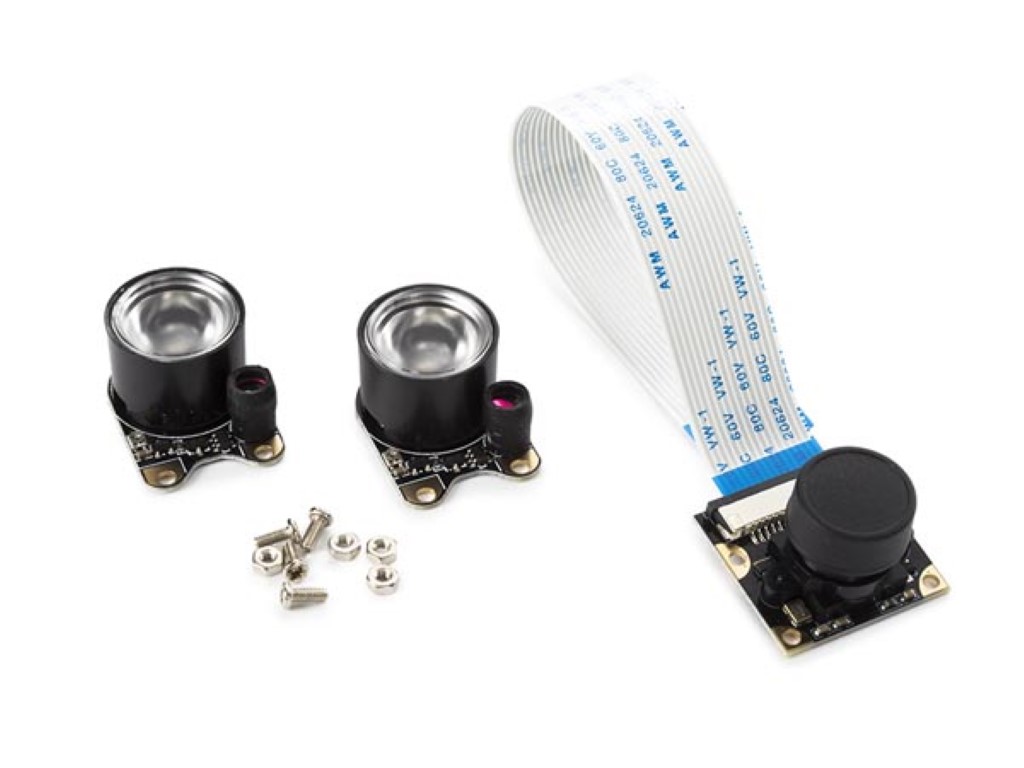

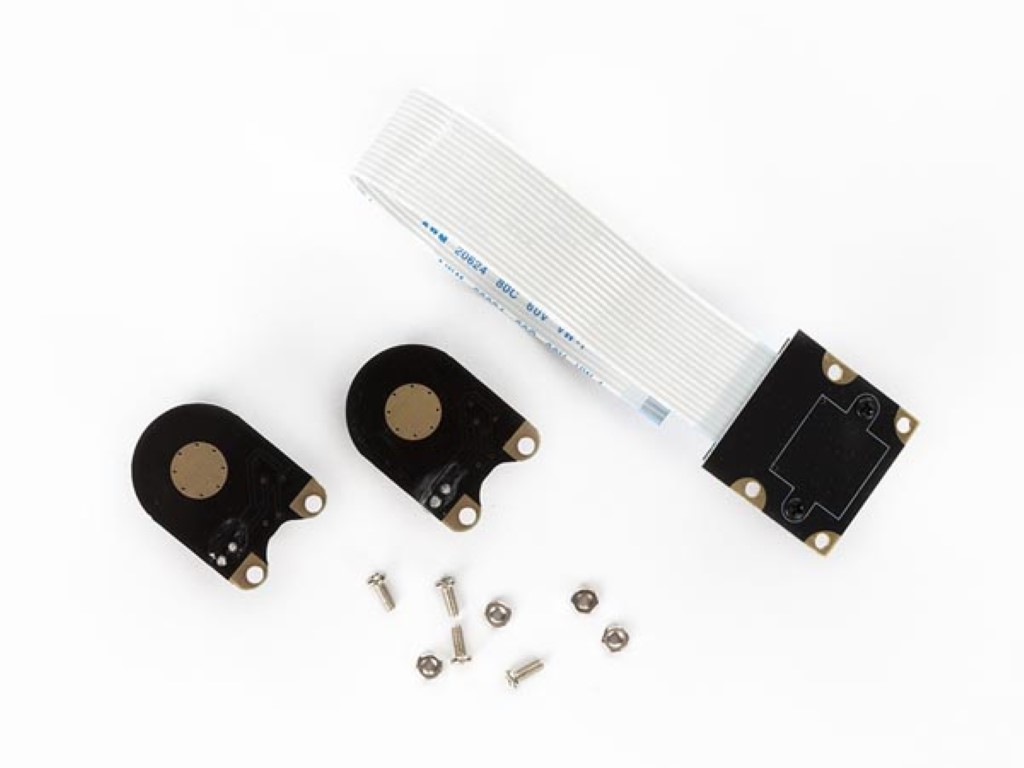

If you want to add a camera to your Raspberry Pi board, but also want night vision to see in the dark, then this module is your solution! The 2 IR lights boards with build-in light sensor can be connected to the central camera module by using the supplied screws. The IR light will turn on when the build-in sensors will detect limited light in the area. Plug-and-play, a tiny size and 5 megapixels to stream in 1080p!

This product is a replacement of: VMP404

Features

• High resolution: 5-megapixel sensor with 1080p video for sharp and clear images.
• Night vision: Equipped with 2 IR LEDs that activate in low light conditions, delivering bright images even in darkness.
• Plug-and-Play: Seamless integration without the need for complicated setup.
• Made in Belgium : Whadda is a unique brand from Belgium’s Velleman Group that offers DIY projects for hobbyists or makers who want to immerse themselves in electronics, programming and mechanics.
• STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger a number of processes such as problem-solving, investigative and creative thinking.

Specifications

• Product basic info:
  • Primary colours: Black
  • Depth unit: 25 mm
  • Height unit: 15 mm
  • Width unit: 22 mm
  • Weight unit: 40.25 g
• Technical data:
  • Specifications kits & modules: <ul><li>Embedded removable IR-CUT filter, eliminating color distortion in the daylight</li> <li>Comes with infrared LED, supports night vision</li> <li>4 screw holes to fix the IR lights</li> <li>Compatible with all Raspberry Pi Boards</li></ul><ul> </ul>
  • Specifications extra kits & modules: <ul><li>sensor: OmniVision OV5647</li><li>still resolution: 5 megapixels</li><li>video modes: 1080p @ 30fps – 720p @ 60 fps – 640×480 @ 60/90 fps</li><li>sensor resolution: 2592 x 1944 pixels</li><li>sensor image area: 3.76 x 2.74 mm</li><li>full frame SLR lens equivalent: 35 mm</li><li>focal length (adjustable): 3.6 mm</li><li>field of view (FOV): 130 degrees</li><li>aperture (F): 1.8 mm</li><li>S/N ratio: 36 dB</li><li>dynamic range: 67 dB @ 8x gain</li><li>weight: 3 g</li><li>IR lights (2): 3.3 V, fits on camera with 2 x 2 screws (included)</li></ul>
• Operational properties:
  • Coding skill level: none
  • Electronics skill level: none
  • Mechanics skill level: none
  • Soldering skill level: none
