NFC / RFID SHIELD FOR ARDUINO®

24,90

In stock

NFC / RFID SHIELD FOR ARDUINO® – Whadda

In stock


SKU: WPSH211 This product is a replacement of: VMA211 Check our full Whadda product transition list Category: Skills: , ,
Free shipping
Free shipping from €50
EU shipping
EU shipping in 1 to 5 days
Belgian shop
Belgian shop
Return policy
14-day unmodified return policy

Description

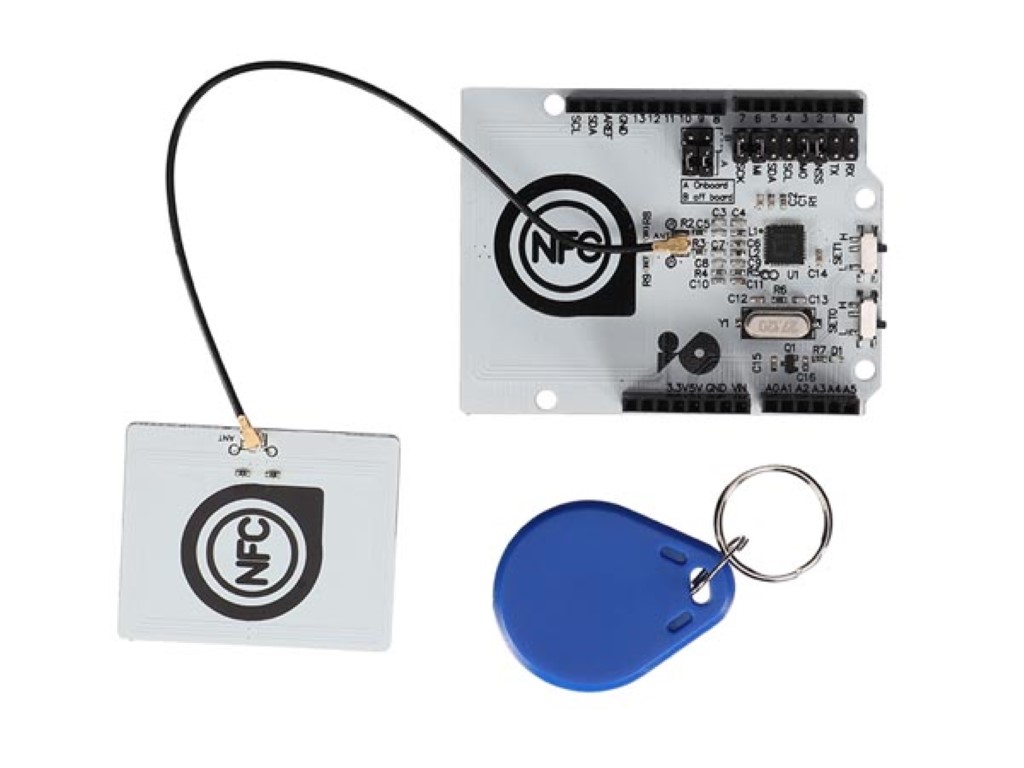

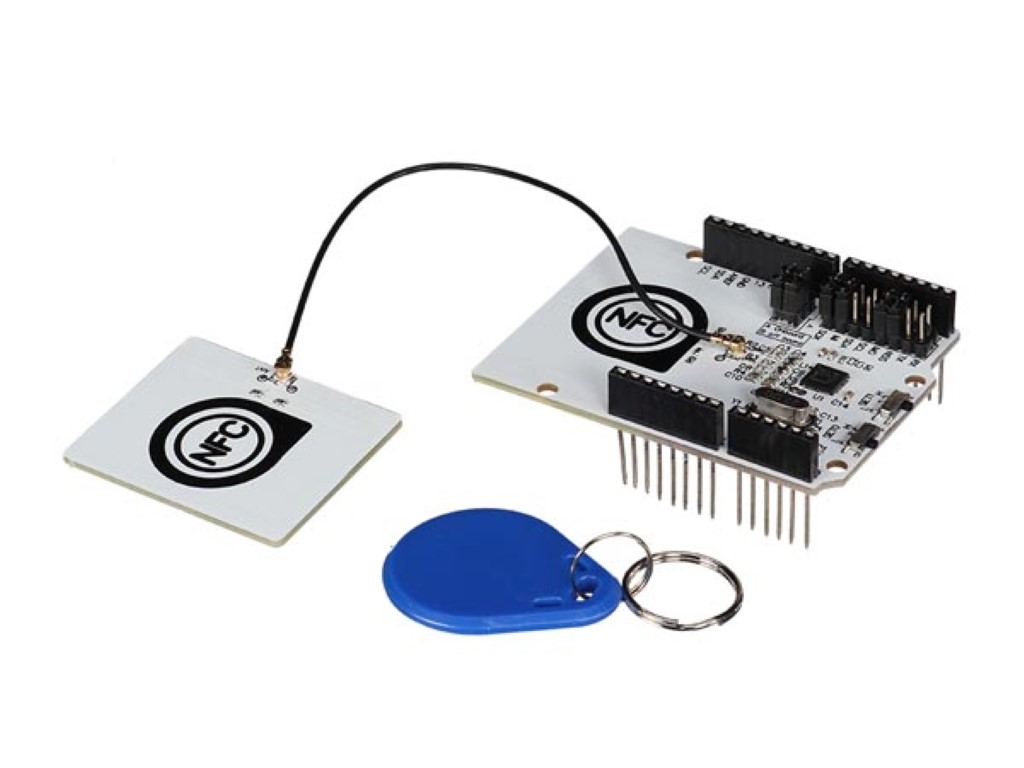

This NFC/RFID controller shield is based on the PN532 chip and can be used for field communication close to 13.56 MHz. This shield comes with an onboard antenna. It is compatible with SPI, IIC, UART interface to communicate and needs to be stacked directly onto the VMA100 UNO control board.

This product is a replacement of: VMA211

Specifications

  • chip: NXP PN532
  • working voltage: 3.3 V
  • power voltage: 3.3 – 5.5 V
  • max. power current: 150 mA
  • working current (standby mode): 100 mA
  • working current (write mode): 120 mA
  • working current (read mode): 120 mA
  • communication distance: 2.5 cm
  • communication interfaces: SPI, I2C, UART
  • compatibility: ISO14443 type A and B cards / tags at 13.56 Mhz
  • dimensions: 69 x 54 x 24 mm
  • weight: 18 g

Additional information

Weight46 g
Dimensions3,50 × 7,50 × 12,00 cm
Soldering

none

Electronics

level 1

Coding

level 2

Mechanics

level 1

Manuals

Manual

User manual
EN
EN

Online Manual

Downloads

Info Sheets

PN532/C1 Datasheet EN
WPSH211 Scheme EN

Software & Firmware

VMA211 Example EN
SPI EN
PN532 SPI EN
